AC Drain Pan Overflow: Causes, Prevention, and Fix

If your AC drain pan is overflowing right now, turn off the AC at the thermostat immediately. Continued operation will pump more water into the pan and accelerate damage to the surrounding area. An overflowing drain pan means the condensate drain line is clogged, blocked, or the float switch has failed. This guide walks through every cause, how to diagnose which one you have, and what to fix first.

For the clogged AC drain line overview that covers all AC drain problems, start there if you’re not sure whether the drain pan overflow is your only issue.

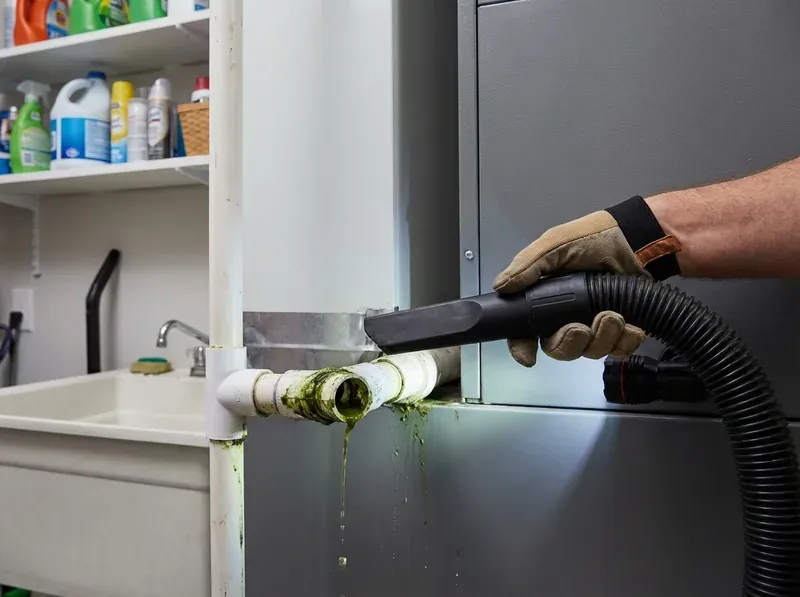

AC condensate drain line being cleared with wet-dry vacuum

Video guide

Video: “BEST AC Drain Line Cleaning Tool” by Deanin’ It Yourself

Is your AC drain pan supposed to have water in it?

Most homeowners don’t know there are two drain pans in many AC systems. Getting this right changes how urgently you need to act.

Primary drain pan (directly under the evaporator coil): This pan always collects some water during AC operation. It drains continuously through the condensate drain line. Standing water in the primary pan that is not draining means the line is clogged. This is fixable with DIY methods.

Secondary (overflow/backup) drain pan: This sits below the primary pan or around the air handler. It should always be completely dry during normal operation. Any water in the secondary pan means the primary drain line has been clogged long enough for the primary pan to overflow into the backup. We always check the secondary pan first when diagnosing overflow problems because finding water there tells us the problem has been happening for a while.

If your secondary drain pan has water in it, turn off the AC now. Running the unit longer will only add more water. The clog has already overwhelmed the primary system.

Symptoms, what AC drain pan overflow looks like

Primary drain pan visibly full or water spilling over the rim
Water dripping from the ceiling near the air handler (common in attic-mounted units where overflow runs down through insulation and drywall)
Water stains on drywall, insulation, or flooring near the air handler
AC shutting off unexpectedly, the float switch activated correctly
Musty or moldy smell from vents (overflow may have been ongoing before it became visible)
Small amounts of water appearing only on unusually humid days (indicates a partial clog or sizing issue)

Diagnosing the cause, use this first

Identify your specific cause before jumping to a fix. Different causes require different solutions.

Symptom pattern	Most likely cause	Jump to
Drain pan full, AC shut off via float switch	Clogged drain line	Cause 1
Secondary pan has any water in it	Prolonged clog, primary overflow	Cause 1 (urgent)
AC running, pan filling slowly	Partial clog or slow drain	Cause 1
Pan overflows only on the most humid days	Excess condensate production	Cause 2
Pan full but drain line is clear when inspected	Float switch stuck or failed	Cause 3
Water in pan plus ice on refrigerant lines or coil	Frozen evaporator coil	Cause 4 (call a pro)

Cause 1, clogged condensate drain line (most common)

A clogged condensate drain line is responsible for the majority of AC drain pan overflow events. Algae, mold, and debris build up inside the 3/4” PVC drain line over weeks or months, especially in humid climates where algae growth conditions are ideal.

How to confirm: Remove the drain access port cap on the air handler. Shine a flashlight into the port. Visible slime, algae growth, or standing water in the port confirms the clog.

DIY fix:

Immediately: Use a wet-dry vacuum to remove standing water from the primary drain pan. This relieves pressure and prevents additional overflow while you fix the underlying cause.
For mild clogs: Use the vinegar flush. See our guide on flush AC drain line with vinegar: 1/4 cup distilled white vinegar into the drain port, 30-minute wait, then flush with warm water.
For baking soda and vinegar (stronger option): Pour 1 cup of baking soda, wait 5 minutes, add 1 cup of vinegar. The solution will bubble. Wait 15 minutes, then flush with warm water. This is the ATCO Energy-recommended method that creates both chemical and mechanical action.
For severe clogs: Combine the vinegar treatment with the wet-dry vacuum technique at the drain outlet. See our step-by-step AC condensate drain cleaning guide for the full procedure, including how to seal the vacuum hose with duct tape for maximum suction.
If the clog doesn’t clear: Use a plumber’s hand snake with a 1/4” diameter coil. Insert it 2-3 feet into the drain access port and rotate to break up the clog. Plumber’s snakes will not scratch PVC pipe interiors, so they are safe for this application.

After clearing: Run the AC for 15 minutes and verify water is dripping from the drain outlet (where the line exits the building). If the pan fills again within an hour, the clog was not fully cleared.

Prevention: Monthly vinegar flush during cooling season. Pour 1/4 cup of distilled white vinegar into the drain port each month. This is the single most effective preventive step.

The Family Handyman AC drain guide{:target=“_blank”} provides additional photos and context on the wet-dry vacuum technique if you want a second reference.

Cause 2, high condensate production (sizing or humidity issue)

Central AC units produce 5-20 gallons of condensate per day in very humid conditions. In extreme humidity or with an oversized unit, condensate production can exceed the drain line’s capacity.

Signs: Overflow happens only on the most humid days. When you inspect the drain line, it appears clear. The drain line is actually flowing; there’s just too much condensate for it to keep up.

Fix: First verify the drain line is not partially clogged (a partial clog combined with high condensate production creates overflow on bad days but clears on mild days). If the line is genuinely clear, you may need a larger drain line (from 3/4” to 1” diameter) or a secondary drain line installation. These are HVAC technician jobs. See HVAC.com condensate system overview{:target=“_blank”} for guidance on condensate system sizing.

Prevention: A whole-home dehumidifier reduces the condensate load on your AC system. Keeping the drain line clear at all times ensures maximum drainage capacity during peak demand.

Cause 3, float switch failure

The float switch is a safety device that shuts off the AC when water in the drain pan reaches a set level. It prevents overflow damage.

Normal behavior: AC shuts off when pan fills, indicating a clogged drain. You clear the drain, and the AC runs normally again.

Failure modes:

Float switch stuck in the “up” (shutoff) position even though the pan is empty: AC won’t run even with a cleared drain line
Float switch fails open (no shutoff): AC runs even when the pan is overflowing, which is dangerous and allows water damage to continue

How to test: With the AC off, manually push the float switch down with your finger. If the AC still won’t run with the switch held in the down position, there is an electrical issue beyond the switch itself; call an HVAC technician.

Float switch replacement cost: The part costs $10-$30. Professional installation runs $75-$150 for a service call. Float switch replacement is accessible for homeowners comfortable with low-voltage thermostat wiring. Always turn off power at the disconnect before touching any wiring.

Cause 4, frozen evaporator coil (call a pro)

A frozen evaporator coil produces water when it thaws, which can fill the drain pan even with a clear drain line.

Symptoms: Ice visible on refrigerant lines or the coil itself; AC blowing warm air; water in the drain pan with no clog in the drain line.

Common causes: Low refrigerant from a leak, a dirty air filter blocking airflow, or a dirty coil.

DIY steps:

Replace the air filter immediately
Turn the AC fully off (set to fan only if available) and allow the coil to thaw completely. Thaw time is 2-4 hours.
After thawing, check the drain line for any resulting overflow from meltwater

Do not attempt refrigerant diagnosis or recharge. Refrigerant handling requires EPA 608 certification. It is not legal for unlicensed homeowners. If the coil freezes repeatedly after you’ve replaced the filter, the refrigerant system needs professional diagnosis.

How to empty an overflowing drain pan

If the pan has active standing water, do this first before attempting any drain cleaning:

Turn off the AC at the thermostat. Do this before anything else.
Vacuum out the water using a wet-dry vacuum. Do not try to pour or bail the water out; you risk spilling on electrical components below the pan.
Dry the pan with old towels.
Inspect for water damage on surrounding drywall, insulation, and wood. Water staining that extends beyond the pan footprint means overflow has been ongoing for a while. Running the AC with a full drain pan risks ceiling water damage within hours in attic-mounted units.
Place dry towels under the unit while you diagnose and fix the drain.

Preventing AC drain pan overflow

Monthly and quarterly maintenance prevents the majority of drain pan overflow situations:

Monthly: Pour 1/4 cup of distilled white vinegar into the drain port during cooling season. We use the flush AC drain line with vinegar method every month and it keeps algae from establishing in the line.
Quarterly: Inspect the drain pan with a flashlight; any standing water means investigate before the next hot day
Annually: Schedule an HVAC tune-up. Technicians clear the drain line as part of standard service. Per the EPA Energy Star AC maintenance guidelines{:target=“_blank”}, annual professional inspection is recommended for all central AC systems.
Exterior check: Make sure the drain outlet (where the line exits the building) is not blocked by debris, mulch, or vegetation.

For broader guidance on preventing clogs throughout your home, see our guide on drain clog prevention.

FAQ

Why does my AC drain pan keep filling up?

A clogged condensate drain line is the most common cause, accounting for the majority of drain pan overflow cases. The drain line clogs from algae and mold growth in humid climates. Other causes include a failed float switch (stuck open, letting the AC run even with a full pan), excess condensate production during extreme humidity, and a frozen evaporator coil producing meltwater. Use the diagnostic table above to identify your specific cause before attempting a fix.

How much does it cost to fix an AC drain pan overflow?

DIY drain line cleaning with vinegar costs nothing if you already have vinegar. The wet-dry vacuum method costs nothing extra. A professional service call for drain cleaning runs $75-$200. Float switch replacement costs $10-$30 for the part and $75-$150 installed. Water damage remediation varies widely depending on what was damaged; addressing an overflowing pan the same day it is discovered minimizes remediation costs significantly.

Can AC drain pan overflow cause mold?

Yes. Water sitting in a warm, dark space grows mold within 24-48 hours under typical indoor summer conditions. If an overflow has been occurring for more than a day or two, the area around and under the air handler should be dried thoroughly and inspected for mold growth. If you see mold on drywall or insulation, contact a remediation professional before replacing the drywall.

Is it safe to run AC with a full drain pan?

No. A float switch should shut the AC off before the pan overflows. If your AC is running with a visibly full drain pan, the float switch has failed and is allowing the AC to operate in an unsafe condition. Turn the AC off manually at the thermostat immediately and diagnose the float switch per the Cause 3 section above.
