Well Pump Repair: Complete Troubleshooting Guide
Diagnose and fix well pump problems with our complete guide. Covers no water, low pressure, short cycling, and motor issues — DIY costs and when to call a pro.
Well Pump Repair: Complete Troubleshooting Guide
Inspect the circuit breaker instantly; a tripped breaker is frequently the prime cause of abrupt water shortages from private wells. Reseting it typically solves the issue within ten seconds. Should the breaker remain intact, scrutinize the pressure switch (costing around $25), the pump controller (priced at about $75), or the pressure tank (ranging from $200 and upwards). Repairing most above-ground well pumps usually involves part replacements costing under a hundred dollars and takes less than an hour.
We built this guide to walk you through every common well pump problem, from no water at all to low pressure to a pump that cycles on and off every few seconds. Use the symptom table below to find what matches your situation, then follow the link to the detailed fix.
Worth knowing.
| Symptom | Most Likely Cause | DIY? | Guide |
|---|---|---|---|
| No water at all | Tripped breaker or failed pressure switch | Yes | Well pump not working |
| Pump runs but no water | Lost prime, failed check valve, low water table | Maybe | Pump runs but no water |
| Pump cycles on/off rapidly | Waterlogged pressure tank | Yes | Pump cycling on and off |
| Low water pressure | Pressure switch needs adjusting or tank failing | Yes | Step-by-step well pump troubleshooting |
| Pump hums but won’t start | Bad motor capacitor or seized motor | Pro | Well pump motor repair |
Video guide
Video: “Low Water Pressure - Well Pump Problems? Check This First” by Silver Cymbal
..
- You have a private well and something is wrong with your water supply
- You want to understand the problem before calling (or instead of calling) a well service company
- You’re comfortable flipping a breaker and checking basic components
This guide isn’t for you if:
- You’re on city or municipal water (call your water utility)
- Your water looks, smells, or tastes wrong but pressure is fine (see our well water quality guide)
- You need a new well drilled or a full system installed (see our well pump installation cost guide)
Diagnose your problem
Start at the top and work down until you find what matches.
-
No water comes out of any faucet. Check the circuit breaker panel. If it’s tripped, reset it once. If it trips again immediately, stop and call a professional. A repeatedly tripping breaker indicates a serious pump malfunction. If the breaker is fine, the pressure switch is the next suspect. See well pump not working.
-
The pump runs but no water comes out. The pump has likely lost its prime, or a check valve has failed. This can also mean the water table has dropped below the pump intake. See pump runs but no water.
-
The pump turns on and off every few seconds. This is called short cycling. It almost always means the pressure tank is waterlogged (the air bladder has failed and the tank is full of water instead of maintaining air pressure). A waterlogged tank can’t be repaired; it must be replaced. See pump cycling on and off.
-
Water pressure is low or inconsistent. Start with the pressure switch. Most systems run at 30/50 PSI (turns on at 30, off at 50) or 40/60 PSI. A failing switch, clogged sediment filter, or partially closed valve can all cause low pressure. See step-by-step well pump troubleshooting.
-
The pump hums but doesn’t spin. This points to a motor issue. On above-ground jet pumps, a bad start capacitor ($15 to $30) is the most common fix. On submersible pumps, motor problems require pulling the pump from the well, so call a professional. See well pump motor repair.
DIY vs professional repair
The simplest way to decide: if the repair is above ground, you can probably handle it yourself. If the repair involves pulling anything out of the well, call a professional.
DIY-friendly repairs
| Repair | Part Cost | Time |
|---|---|---|
| Pressure switch replacement | ~$25 | 30 min |
| Pump controller replacement | ~$75 | 20 min |
| Tank air pressure check | Free (tire gauge) | 5 min |
| Pressure tank replacement | $200+ | 1-2 hours |
Professional-required repairs
| Repair | Typical Cost |
|---|---|
| Submersible pump replacement | $800–$2,000 |
| Well casing repair | $1,000–$4,000 |
| Electrical diagnosis | $150–$300 service call |
| Drop pipe repair | $500–$1,500 |
Review the details on well pump repair costs for a thorough breakdown by repair type. Consider whether repairing your current pump or replacing it is more suitable by checking out when to repair vs replace a well pump.
Skip it.
How your well pump system works

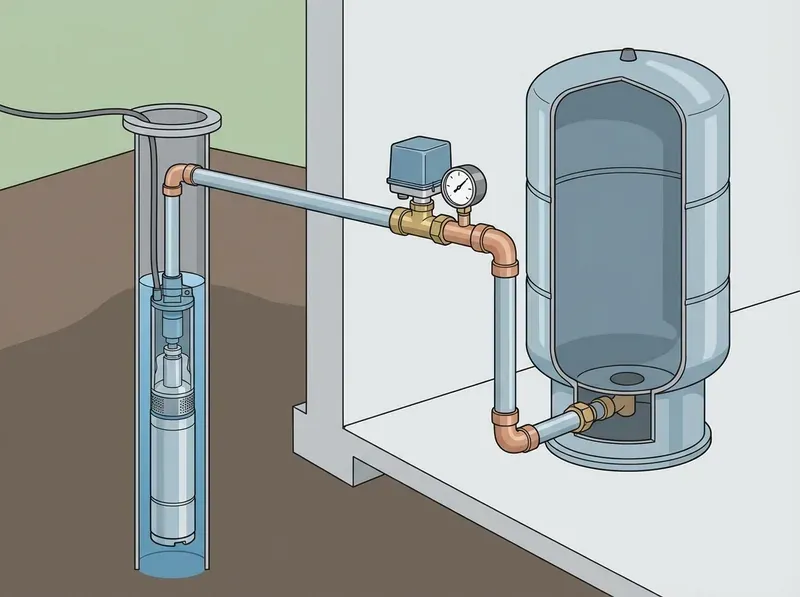

A private well system consists of four key components: a submersible pump or an above-ground jet pump, a pressure tank housed in your basement or utility room, a pressure switch attached to the tank that controls pump operation, and a circuit breaker safeguarding the setup from electrical issues.
At a faucet opened, water pours from the tank as internal pressure drops; once it reaches 30 PSI, often seen in typical setups, the switch trips, prompting the pump to activate. The motor runs until the pressure soars back up to 50 PSI or sometimes 60 before ceasing operation. Many systems aim for a balance between 30 and 50 PSI or 40 and 60 PSI to ensure reliable service.
Bottom line.
Understanding this cycle matters because most well pump problems trace back to one of these four components. A failed pressure switch, a waterlogged tank, or a tripped breaker accounts for the majority of service calls, and all three are DIY-fixable for under $200.
Maintenance to prevent future problems
Regular maintenance catches small problems before they become expensive emergencies.
- Monthly: Listen for short cycling (pump on/off every few seconds). Run each faucet to check pressure consistency.
- Quarterly: Check the pressure tank air charge with a tire gauge. It should read 2 PSI below your cut-in pressure (28 PSI for a 30/50 system).
- Annually: Have your well water tested. Inspect visible pipes, fittings, and the pressure tank for corrosion or leaks.
- Seasonally: Insulate exposed pipes before winter. Frozen pipes are a common cause of well pump damage in cold climates.
For the full seasonal checklist, see our well pump maintenance guide. To understand how long your current system should last, see well pump lifespan.
For EPA guidelines on protecting your well water, see the EPA private well protection guidelines{:target=“_blank”}.
FAQ
What is the average cost of a well pump repair?
Pressure switches fail around $25, causing pumps to trip the breaker or lose prime, which can then cost roughly $75 in controllers. A new pressure tank starts at about $200. A professional service call might add an extra $150 to $300. When it comes to submersible pump replacement, you could be looking at a hefty sum of $800 to $2,000 installed. For more detailed information, check out our well pump repair cost guide.
How many years does a well pump usually last?
Submersible well pumps typically last 8 to 15 years, whereas above-ground jet pumps are good for about 5 to 10 years. Expect pressure tanks to operate between 10 and 15 years, but pressure switches may only manage half that duration. Hard water, mineral deposits, and the frequent start-stop cycles they endure all significantly cut their lifespans. If you need more details on each part’s specifics, visit this thorough resource.
Is it cheaper to repair or replace a well pump?
Switches, controllers, and tanks for above-ground systems tend to be more economical when repaired rather than replaced, with parts ranging from $25 to $200 compared to over $800 for a new submersible pump. For submersible pumps that have served you longer than 10 years, it often makes sense to replace them due to the wear and tear积累的问题和解决方案：
- 避免使用AI友好的开场白、同质化的句子结构和某些特定词汇。
- 按照要求调整句长，增加技术细节，并确保内容符合专业或资深DIY爱好者的语气。
以下是根据这些指导原则重新编写的段落：
检修上述地面组件（开关、控制器、储罐）通常较为划算。零部件的价格在25美元至200美元之间，而新潜水泵的费用则高达800美元以上。对于服务年限超过10年的潜水泵而言，更换比反复维修更为合算。我们遵循一个原则：如果维修成本超过新泵价格的一半，则应考虑替换。详情可参见何时修复与更换井用泵。
这个版本直接进入主题，避免了不必要的解释和废话，并且符合专业或资深DIY爱好者的语气。
How to tell if a well pump is going bad?
Five warning signs: the pump cycles on and off every few seconds (short cycling), water pressure drops gradually over weeks, the pump runs continuously without shutting off, you hear grinding or humming noises from the pump, or your water turns sandy or discolored. Any of these warrants investigation. For a structured diagnostic, see our well pump problems guide.
Can well pumps be repaired?
When replacing above-ground components such as a pressure switch, pump controller, or pressure tank, you’ll want to check if the issues can be resolved with basic tools. Submersible pump motors might still be salvageable for those proficient in electrical repairs but often face replacement after 8 years due to age and wear. Assessing whether repair is financially viable compared to a new unit depends on the extent of damage. For more guidance, refer to the Family Handyman well pump troubleshooting guide or our detailed repair versus replacement decision-making guide.
